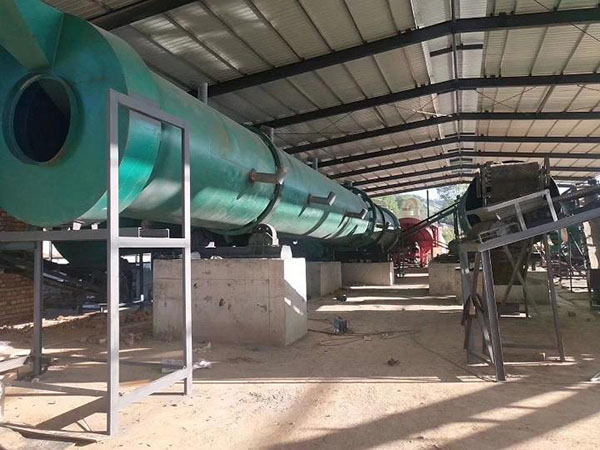

New type Humic acid organic fertilizer stirring teeth drum
granulating production line
Introduction to Humic acid organic fertilizer stirring teeth drum
granulating production line
This series of Humic acid organic fertilizer stirring teeth drum
granulating production line is a new patented product developed by
our company and the Agricultural Machinery Research Institute. The
machine can not only granulate a variety of organic matter,
especially for the coarse fiber materials which are difficult to be
granulated by conventional equipment, such as crop straw, wine
residue, mushroom residue, drug residue, animal dung and so on. The
granulation can be made after fermentation, and it also can be
achieved the better effect of grain making to acid and municipal
sludge.
Features of Humic acid organic fertilizer stirring teeth drum
granulating production line
The first section of the housing is split type assembly without
lifting device or manual dismantling. It is easy to clean the inner
wall of the shell.
Operation principle: first, the material enters the first
granulation section from the uniform feeding part (through the
speed regulating feed volume) and prepare for granulation through
high speed and adjustable mixing knife, then push to the second
granulation section. Granulation material in the two granulation
section, through the internal mixing teeth two times granulation
and outer cylinder molding, achieve the purpose of granulation, so
that the particles have better quality assurance. We designed
suction ports and dust outlets in silos, and users can connect
vacuum cleaners to meet environmental discharge requirements. We
also designed the observation door and the nozzle of the spray
tube. The user can spray the liquid into the particles in the drum
according to the requirement of particle size.
Parameter of Humic acid organic fertilizer stirring teeth drum
granulating production line
| Model | Cylinder |
Power(kw) |
Capacity(t/h) |
Dimensions
Length*width*height (mm) |
Inclination(0) |
Inner diameter (m) |
Length(m) |
Speed(r/min) |
| SH1.2×4 | 2-2.5 | 1.2 | 4 | 17 | 5.5 | 1-3 | 4600*2200*2000 |
| SH1.5×6 | 2-2.5 | 1.5 | 6 | 11.5 | 7.5 | 3-7 | 7000*1800*1800 |
| SH1.8×7 | 2-2.5 | 1.8 | 7 | 11.5 | 15 | 8-15 | 8300*3500*3300 |
| SH2.0×8 | 2-2.5 | 2 | 8 | 11 | 18.5 | 15-25 | 9100*3600*3500 |
| SH2.2x10 | 2-2.5 | 2.2 | 10 | 10.5 | 30 | 18-30 | 9500*4400*3900 |
| SH2.4x10 | 2-2.5 | 2.4 | 10 | 10 | 37 | 20-30 | 10000*2912*3923 |
| SH2.8x10 | 2-2.5 | 2.8 | 10 | 13 | 75 | 25-50 | 10000*3100*4000 |
