60 Thousand T/Year Capacity For Organic Fertilizer Granulator
Machine Production
Introduction Of Fertilizer Granulator Machine

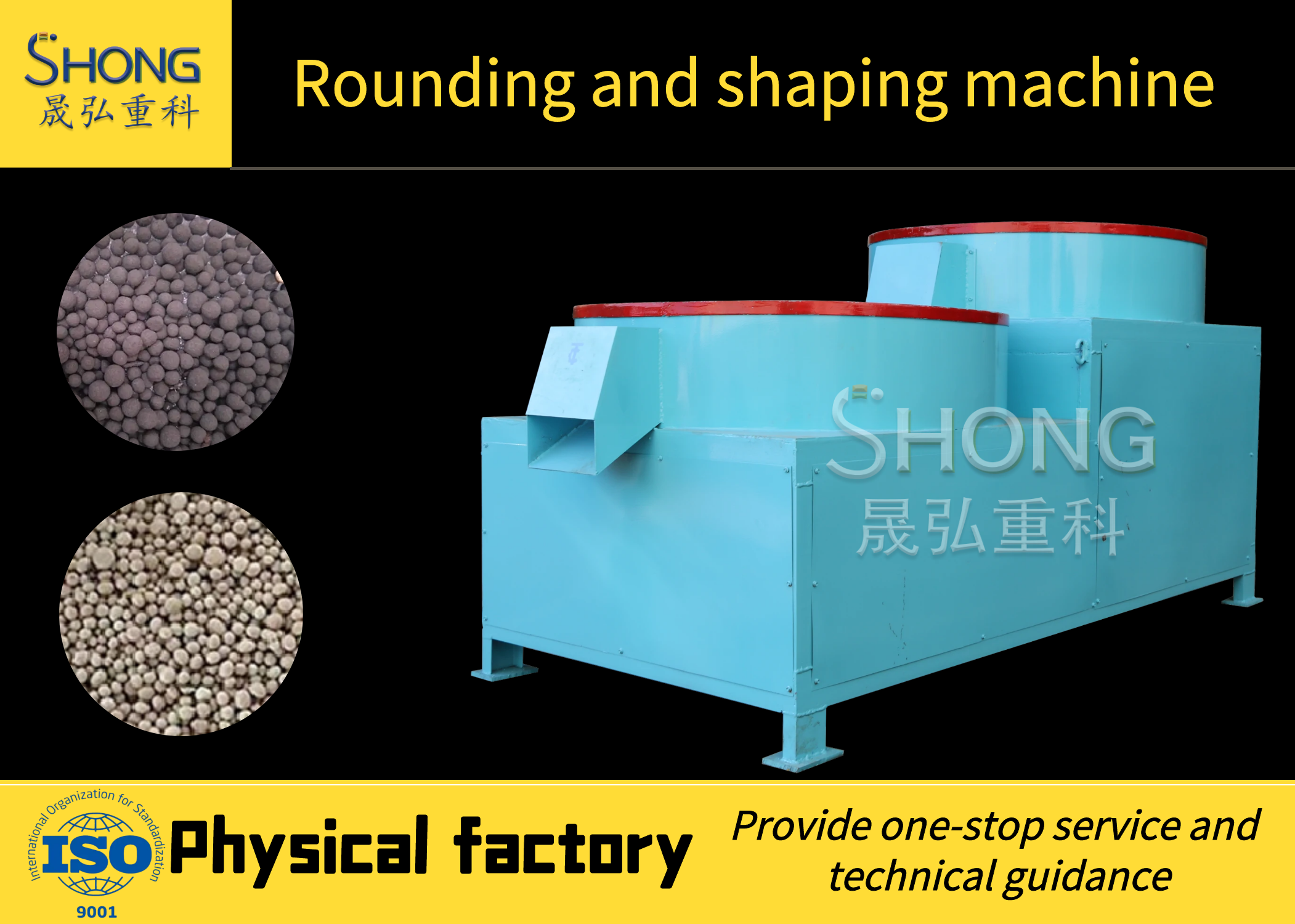

The Organic Fertilizer Round Polishing Machine Designed on the
basis of Flat Die Extrusion Granulator Machine. Polish the
cylindrical pellets made by Flat Die Extrusion Granulator Machine
to Ball shape granules one time; No need polish again; Ball forming
rate is very high≥ 97%; Granules with high density,beautiful and
practical.Is the ideal equipment to produce Organic (Biological)
Fertilizer. This machine designed with special internal structure
according to the process requirements, is an effective
compound-organic fertilizer dedicated equipment.
Raw Material Of Fertilizer Granulator Machine
1. Turfs, lignite, sludge, pond sludge,Sucrose slag,starch pulp as
materials can be made into granules;
2. Duck manure , pig manure , sheep dung , deer manure ,cow dung
and earthworm cast as materials can be made into granules;
3. Bean cakes ,Vinasse slag, Biogas residue , Fruit residue ,palm
oil residue as the main materials can be made into granules;
4. Residues of urban rubbish or sewage treatment plants as
materials can be made into granules.
5. Organic materials mix with mineral materials
Technical Parameters Of Fertilizer Granulator Machine
| Model | KHL-500 |
| Capacity | 2-2.5 t/h |
| Input moisture required | 30-35% |
| Input materials particles | 0.3-0.5 mm |
| Production rate | more than 90% |
| Style | Organic Shaping Granulator |
| Power | 65.5 KW |
| Weight | 3500 kgs |
| Fianl granules size | 3.5-5.5 mm |
| Temperature increase | less than 30 ° |
Application Of Fertilizer Granulator Machine
1) High rate of Finished product. More than 90%.
Granulation rate can reach as high as 100%, all the raw material
can be made into round ball granules.
One-time production of uniform spherical granules, few returning
materials.
2) Uniform spherical granules, Narrow particle size distribution.
The diameter of granules can be controlled easily. Different sizes
of granules can be produced to meet your own needs as long as you
change the diameter of the ring die.
3) Good hardness, strong enough for packaging.
The granules will keep the round ball shape in the storage and
transportation process, won't collapse, that's because the
granulator machine has a good compressive capacity.
Adapt to make fertilizer and feed, etc.
