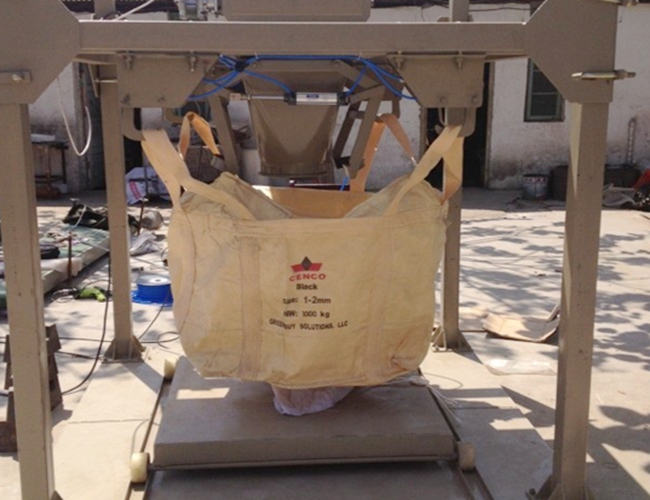

1000KG Per Bag Fertilizer Packaging Machine For NPK Fertilizer
Introduction Of Fertilizer Packaging Machine
Applicable material: it is suitable for woven bag, jute bag, paper
bag, cloth bag, plastic bags, etc.
New technology: adopt advanced microcomputer control processing
technology, frequency control of motor speed, easy operation, fast
speed, precision is greatly improved.Through the belt forced
blanking, high efficiency, stable operation, easy maintenance.
Widely used in feed, flour, salt fertilization, controlled release
fertilizer, additive, chemical industry, paint, etc.
Applicable materials: powder materials, mixed material, particle
material.
Raw Material Of Fertilize Packaging Machine
| Calcium nitrate | Urea | Single superphosphate | Kainit |
| Ammonium bicarbonate | Ammonium chloride | Rock phosphate | Potassium chloride |
| Nitrate of soda | Ammonium sulphate nitrate | Dicalcium phosphate | Potassium sulphate |
| Ammonium sulphate | Ammonium nitrate | Triple superphosphate | Potassium nitrate |
Feature Of Fertilizer Packaging Machine
1. Designed according to the national standard GMP, up to hygiene
standard of foodstuff.
2. The parts which contact with the filling are made of 304
stainless steel, suit for Anti-corrosion chemical products packing.
3. Adopts PLC-touch screen control system, with error correction,
deviation alarm and other functions
4. Adopt the new type weighing system in packing, with high speed
and high precision measurement instrument, strong function
5. With the Roller and PVC conveying belt (the skeleton is made of
stainless steel) to deliver the products. Double screw feeder .The
roller can be taken down to clean, easy to clean, cleaning with no
dead angle.
6. With calibration procedure: equipped with weights and
calibration hooks, calibration at any time, especially can
calibrate the weight for the machine long time no use.
Technical Parameters of Fertilizer Packgaing Machine
| Applicable material | particles, powder material |
| Weighting Range | 10~25kg |
| Speed(bag/h) | ≥240 |
| Power Supply | 380V 220V 50Hz |
| Power Consumption | RV50 0.55kw RV50 0.75 0.37KW |
| Material | All contact with the material for the production of stainless steel material, good liquidity, wear resistance, corrosion resistance, easy to clean sanitation. |
| Feeding way | Belt feeding |
| Installation Size(mm) | 2100*760*900mm |
Application Of Fertilizer Pacaging Machine
The packaging machine is mainly used for automatic quantitative
packaging of pesticides, fertilizers, veterinarydrugs, animalfeed,
premix, additives, detergents, salt, MSG, seeds, rice and other
grains, powdered materials packing.
In fertilizer production line, it is used at the end of production
line, then through mobile conveyor to truck.
