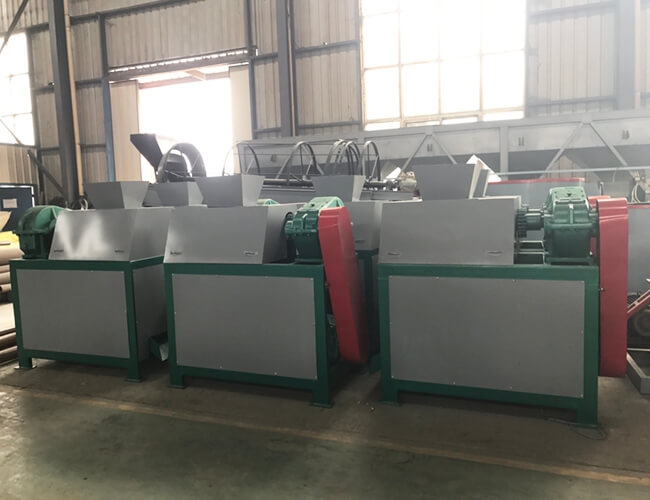

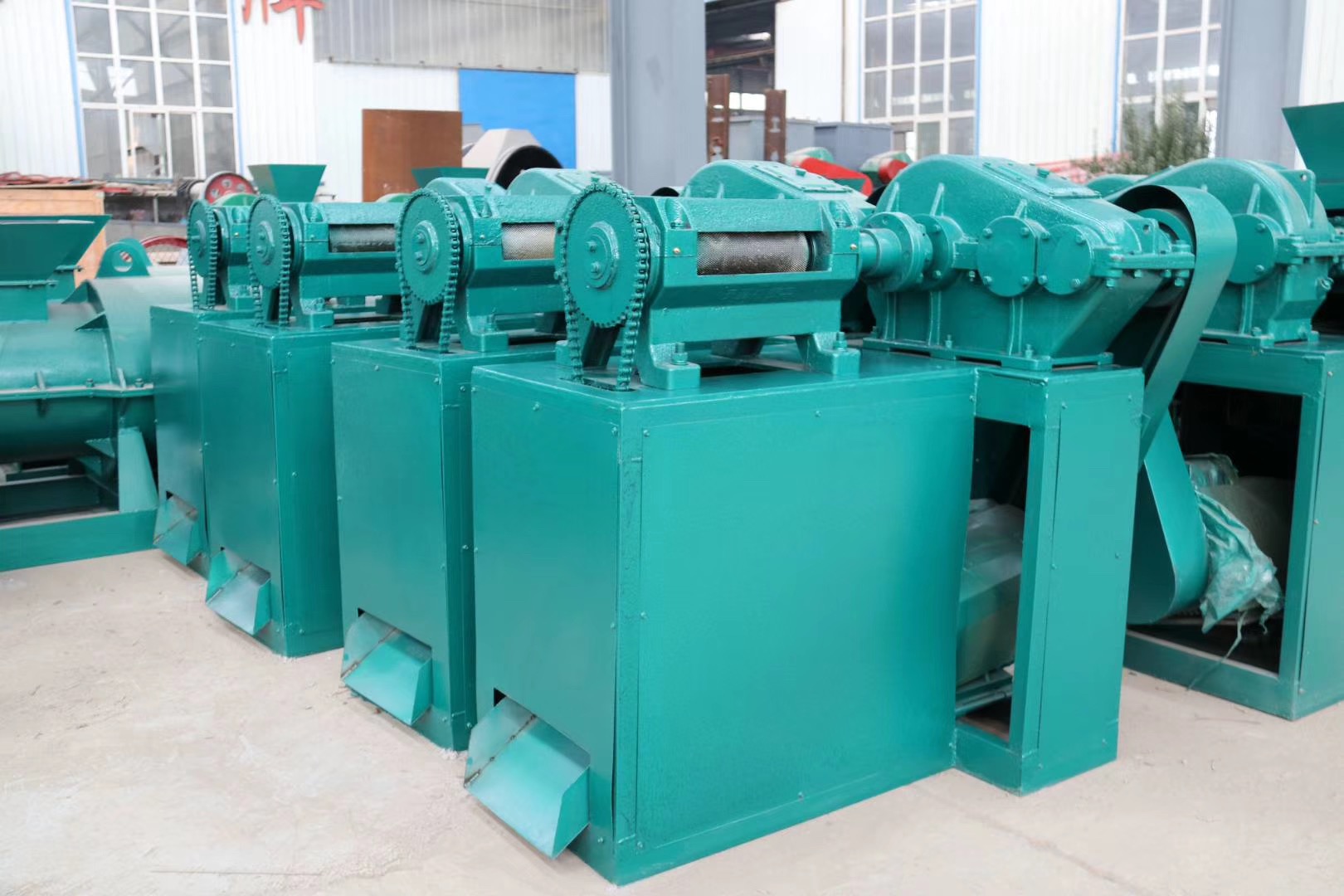

Inorganic Compound Fertilizer Double Roller Granulator , Extrusion
Pellet Machine
The instruction of the roller extrusion granulator
1. No drying technology, normal temperature granulating, once
forming.
2. Low investment, quick profit, good economic returns, etc.
3.Combine granulating,forming,screening into one machine,making
beautiful appearance
granules, easy operation and low energy consumption, etc.
4. Especially, DZJ-5. not only has the above features, but also
upgrades its rack.The bearing
frame body is made of high quality and anticorrosive cast
materials, so that it become more
stable and extends the roller's service life.
Advantages of double roller granulator:
The roller press granulator has advantages
1.less investment, good economic returns.
2.A complete set of fertilizer extrusion granulator is compact,
scientific, reasonable and advanced technologies.
3.No waste discharge,stable,and easy operation and maintenance.
4.this roller extrusion granulator can directly squeeze dry powder
materials into granules,which belongs to dry method granulation
Application of double roller granulator:
The roller extrusion granulator has Wide adaptability of raw
materials is DAP,SSP,GYPSUM,SHEEP MANURE, COW MANURE , chicken
manure, pig manure,bentonite and other animal poultry manure waste
and so on.the roller press granulator Production rate is high. It
can produce all kinds of high concentration with a various
fertilizers including organic fertilizer, Inorganic
fertilizer,compound fertilizer,etc.especially rare earth
fertilizer,potash fertilizer,ammonium bicarbonate series for this
fertilizer granulator.the fertilizer press machine makes up the gap
leading the position in domestic.when using this granulator as a
whole fertilizer production line,it does not need a rotary dryer.
Technical Parameters
| Model | DZJ-I 1.0 | DZJ-I 2.0 | DZJ-I3.0 | DZJ-I 4.0 | DZJ-II 1.0 | DZJ-II 2.0 |
| Capacity | 1-1.5 | 1.5-2.5 | 2.5-3.5 | 3.5-4.5 | 1-2 | 1.5-2.5 |
| Power | 15Kw | 18.5Kw | 30Kw | 45Kw | 15Kw | 18.5Kw |
| Press Roller | Φ150×22O | Φ150×30O | Φ186×30O | Φ300×30O | Φ150×22O | Φ150×30O |
| Feed Size | 0.5mm | 0.5mm | 0.5mm | 0.5mm | 0.5mm | 0.5mm |
| Product Size | Φ2.5~Φ10 | Φ2.5~Φ10 | Φ2.5~Φ20 | Φ2.5~Φ20 | Φ2.5~Φ10 | Φ2.5~Φ10 |
| Speed Reducer | ZQH350 | ZQH400 | ZQH400 | ZQH500 | | |
| Material Mositure | 2%~5% | 2%~5% | 2%~5% | 2%~5% | 2%~5% | 2%~5% |
Features of Fertilizer Granulator Machine
1.Simple machine structure
2.Easy operation and maintenance
3.Low power consumption
4.Once forming , no drying process , normal temperature granulating
5.Long service life
