ISO High Quality Organic Fertilizer Pellet Production Line With
10-12t/h
The Raw Material of Fertilizer Production Line
1. Turfs, lignite, sludge, pond sludge,Sucrose slag,starch pulp as
materials can be made into granules;
2. Chicken manure ,duck manure , pig manure , sheep dung , deer
manure ,cow dung and earthworm cast as materials can be made into
granules ;
3. Bean cakes ,Vinasse slag, Biogas residue , Fruit residue ,palm
oil residue as the main materials can be made into granules;
4. Residues of urban rubbish or sewage treatment plants as
materials can be made into granules.

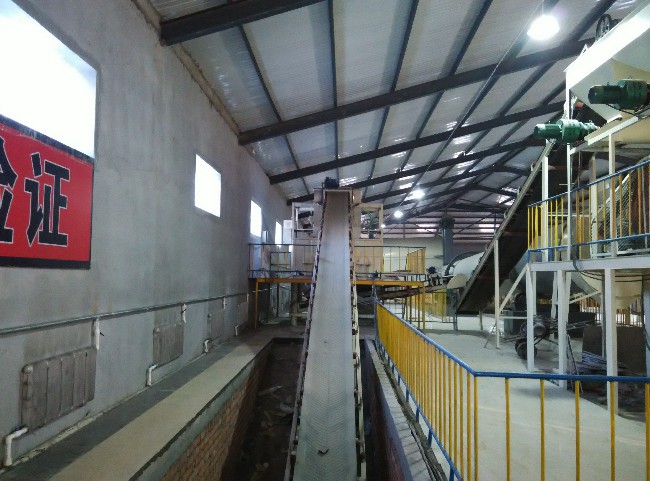

The Process of Fertilizer Production Line
Organic fertilizer production line usually includes 8 processes,
fermenting, grinding, mixing, granulating, drying, cooling,
screening and packaging. Fermenting, Crushing, mixing, granulating
and screening processes are necessary. Other processes are optional
based on different capacity.
| No. | Processes | Machines | Function of machines |
| 1 | Fermenting process | Fermentation turner | Mix and blend compost during fermentation evenly |
| 2 | Grinding process | Hopper for forklift | Feed compost into grinder evenly |
| Grinder | Grind compost to powder. |
| 3 | Mixing process | Mixer | Mix compost powder evenly, If necessary, add water, beneficial
bacteria, or other micro-elements |
| 4 | Granulating process | Feeding machine | Feed mixed powder into granulator evenly |
| Granulator | Make mixed powder into fertilizer granules |
| 5 | Drying process | Dryer | Dry fertilizer granules to low moisture by hot air |
| Hot stove | Generate hot air to dryer |
| Cyclone | Collect dust from dryer |
| 6 | Cooling process | Cooler | Cool fertilizer granules to normal temperature |
| Cyclone | Collect dust from cooler |
| 7 | Screening process | Screener | Screen out required size from fertilizer granules |
| 8 | Packaging process | Air compressor | Generate power to packaging machine |
| Packaging machine | Package fertilizer granules into bags |
The Benefits of Fertilizer Production Line
1. Wide adaptability of raw materials, suitable for compound
fertilizer, pharmaceuticals, chemicals, fodder and so on.
2. High-quality, stable performance, anti-corrosion and
wear-resistant materials components, abrasion proof, low energy
consumption, long service lifespan, easy maintenance and operation,
etc.
3. High efficiency and economic returns, and the small part of
feeding back material can be granulated again.
4. Adjustable capacity according to customers’ requirements.
